Front driving motor from internationally famous brand, with small turning radius and strong climbing ability
Double magnetic brus plates which are more convenient to disassemble/install and more user-friendly
The extra-large solution/recovery tanks can avoid frequently adding clean water and dumping sewage
The curved rib design of the water tanks will enhance the services life of the entire machine
ECO mode reduce the power and noise of the suction motor

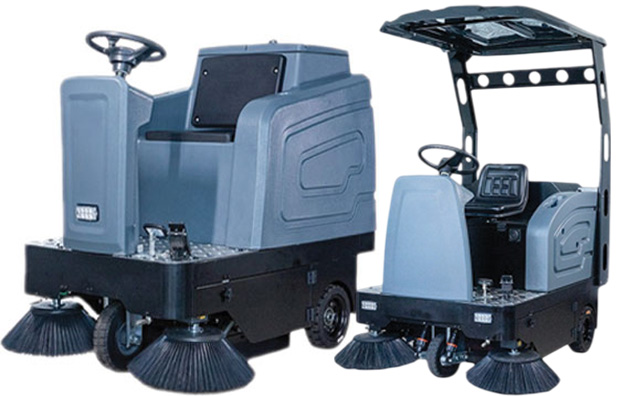

| Technical Data | ||
|---|---|---|
| Specification | Build-1250 | Build-1450 |
| Battery (Free Maintenance) | 48V/58Ah | 24V/100Ah |
| Charger | 24V/8A | 24V/15A |
| Drive Motor W | 800W | 1000W |
| Vacuum Motor W | 500W | 500W |
| Cylindrical Brush Motor W | 750W | 850W |
| Side Brush Motor W | 90W x 2 | 90W x 2 |
| Min. Aisle Turn (mm) | 1500mm | 1500mm |
| Cleaning Path mm | 1250mm | 1450mm |
| Cylindrical Brush Width mm | Ø 300*500mm | Ø 300*700mm |
| Side Brush Width (mm) | Ø 460mm | Ø 500mm |
| Max. Coverage per hour (m²/h) | 7500 | 8700 |
| Water Tank Capacity (L) | 30L | 90L |
| Debris Hopper Capacity (L) | 90L | 150L |
| Continuous Operating Time (h) | 2-3h | - |
| Gradeability (%) | - | 25% |
| Charging Time (h) | 8-10h | 8-10h |
| Operating Weight (inc. battery) | 333kg | 465kg |
| Operating Size mm | 1550 x 1250 x 1250mm | 1700*1400*1250mm |
| Operating Size (Top Cover) mm | - | 1700*1400*2050mm |

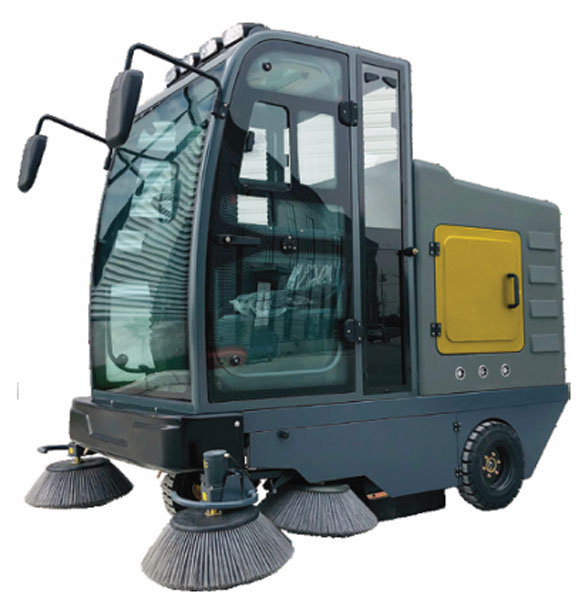

| Technical Data - Build Wb2000a | |
|---|---|
| Cleaning Capacity | 12000 m²/h |
| Sweeping Path | 2000 mm |
| Side Brush | 4 × 500 mm |
| Capacity of dirt container | 250 L |
| Main brush motor | 1000 W |
| Driving speed | 0-8 km/h |
| Fan Motor | 600 W × 2 pcs |
| Filter | 15 m² |
| Size With Brushes (L×W×H) | 2200 × 2000 × 2000 mm |
| Working Time | 6-8 hrs. |
| Main Brush Width | 800 mm |
| Battery | 48V/150 Ah |
| Driving Motor | 1200 W |
| Side Broom Quantity | 4 × 80 W |
| Climbing Ability | 25° |
| Water Spray | Standard |
| Water Container | 100 L |
| Weight with battery | 1050 kg |

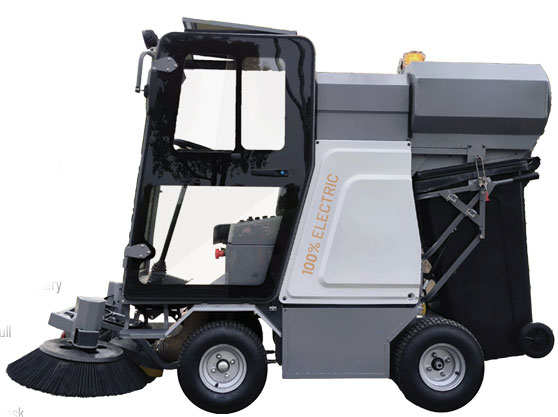

| Technical Data - Build SS-240 | |
|---|---|
| Container | Standard 250L bin |
| Sweeping width | 2050 mm |
| Working Speed | Forward 0-11 km/h adjustable, Reverse 0-6 km/h adjustable |
| Working time | >5h per full charge |
| Hose | 3m ø 125 mm with adjustable handler |
| Filter (5μm HEPA) | 2x HEPA efficiency and washable polyester air cartridge filter |
| Filter surface | 30 m² |
| Filter cleaning system | Onboard automatic air pulse jet dedusting system |
| Nebulizer | Onboard automatic water spray system, 6L water tank |
| Noise | 65 dB(A) at 3 meter |
| Chassis | Welded steel frame and powder coating chassis |
| Body work | Steel |
| Tyres | 4 × 15 inch tubeless tyres |
| Curb Weight | 465 kg without batteries 885 kg with GEL battery Group |
| Dimensions | 2450 × 980 × 1900 mm (without brush) 2650 × 2050 × 1800 mm (with 2 brushes) |
| Min. Turning Radius | 2000 mm |
| Max. Gradeability | 25% |
| Max. Climbing height | 150 mm climbing up, and 180 mm down |
| Power Supply | 48VDC 150Ah GEL battery group Optional Lithium batteries |
| Traction Motor | 48VDC 2.2 kW PM motor Sealed Transaxle |
| Vacuum Motor | 48V-15 kW brushless motor |
| Braking and Parking | Regenerative and Electromechanical Braking |
| Charger | 48V 20A off-board Intelligent MCU Charger |
| Charging time | 8h (110VAC~250VAC) |
| Lights | Twin powerful working LED safety flashing light |
| Bin sensor | Warning buzzer and LED onboard when the bin is full |
